ABORTED_AT_NOQ

Failed

The status is caused by when a MT is sent to SMSC multiple times without getting ack back, and platform decides to abort it.

ACCEPTED_BY_CLIENT

Received

Message delivered, confirmation of message details received.

i.e. Replies from a 'registered delivery' Message.

ACCEPTED_BY_CLIENT

Receipt

Message delivered, confirmation of message details received.

i.e. Replies from a 'registered delivery' Message.

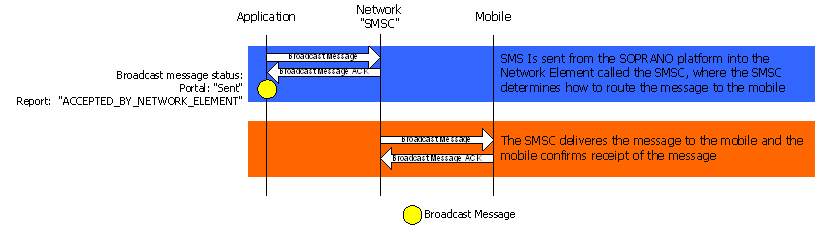

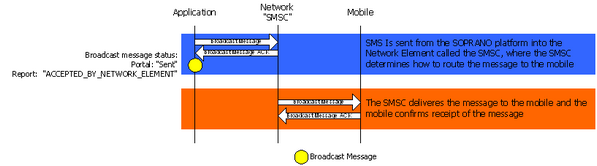

ACCEPTED_BY_NETWORK_ELEMENT

Sent

Outbound Broadcast Message

CONCATENATE_SPLIT

CONCATENATE_SPLIT ()

Message is concatenated into various components. The row with this STATUS is the parent message, with each component of the message broken out into their own message / rows in table.

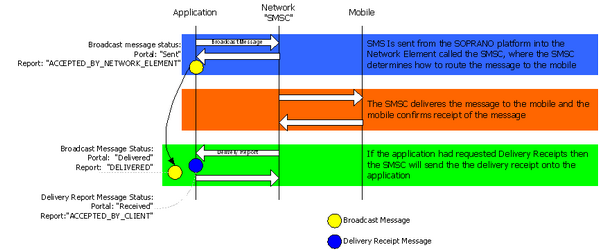

DELIVERED

Delivered

Outbound Broadcast Message Delivered to handset (With Delivery Receipts turned on)

DELIVERED_TO_CLIENT

Delivered

Delivered (From Network) to AT&T GSMS, these messages are inbound (from handset)messages.

ENROUTE_IN_CIQ

In transit

Message has been passed from the application to the internal routing of the platform and is pending delivery to the network.

ENROUTE_IN_COQ

In transit

Message has been passed from the network to the internal routing of the platform and is pending delivery to a Client application (API).

ENROUTE_IN_NOQ

In transit

Message has been passed from the application through the routing layer of the platform and is  is pending delivery to the network.

ErrorCode = 'X'

Failed

Failure to submit the message toward the SMSC/Operator network.

'X' is the SMPP Error Code that is received back on trying to submit it towards the SMSC. This may vary per operator SMSC.

Example:

•ErrorCode = 8, May be 'System Error'

•ErrorCode = 11 May be "Invalid Source Address"

•ErrorCode = 255, System Failure

Please refer to the SMPP Status & Error Codes

EXPIRED

Failed

Message could not be delivered, a status provided for a message that was unable to be delivered and expired on the Network platform.

Only available if Delivery Receipt was requested.

FAILED

Failed

Message could not be delivered.

FILTERED_IN_CUST_PREF.<listID>

Failed

Message is filtered in a company blacklist.

FILTERED_IN_PERM_PROF.<listID>

Failed

Message is filtered in an order blacklist.

INVALID

Failed

Message not delivered, does not meet required parameters.

QUEUED

In transit

Message is waiting to be sent after higher priority messages.

SUBMIT_MULTI_SPLIT

SUBMIT_MULTI_SPLIT()

Message destined for multiple recipients is broken out into individual messages records for  each of the recipients. The row with this STATUS is the parent, with each message broken out into their own message / rows in table.

UNDELIVERABLE

Failed

Message could not be delivered, a status provided for a message that was unable to be delivered.

If it is a registered delivery - there are 2 items: 'DELIVERED' (means the message is delivered to the handset) and 'RECEIPT' for the registered delivery receipt that Telstra sends. This incurs an extra cost.
